4000W/14000BTU Outdoor Cabinet Floor-Mounted Console Tower Split Air Conditionerr for electricity field – CooltechX CTACD4026W

For Battery Enclosure/ GRS enclosure /High voltage switch/Power cabinet

Product Highlights:

  • IP56 certified to guard against dangerous dust
  • Long lifespan: function constantly and uninterruptedly for five to ten years
  • Eight distinct alarming functions comprise the overall alarm signal output.
  • Eco-friendly R134a refrigerant: fulfills ROHS regulations; supports Modbus; RS485 terminal: facilitates remote monitoring
  • Customized customization is supported by Cooltechx for enclosure air conditioners.
  • A customizable cooling capacity of 800W, 1500W, 2500W, 4000W, or 7500W is available.
Chat Now
Message
Email
Chat Now
Message
Email

GLOBAL PARTNERSHIP

Establish Intimidate Partnerships with International Companies
LG
microsoft
Hisense
Haier
BYD
mazda
tk
delta
eaton
entel
JAGUAR
LAND ROVER
legrand
dwd
mobile
tower

Why Cooltechx?

Distinguished R&D Staff, Supportive After-sale Service, and Specialized Customization
Cooltechx enclosure air conditioner is designed to maintain a constant temperature for your machine operation to ensure efficiency.
Cooltechx enclosure air conditioner is easy to install, all you need to do is prepare tools and operate according to the User Guide.
Cooltechx has completed many tests for leading power companies such as Taikai Power and Taishan High Voltage, and all the cabinet air conditioners are in a good performance.
Cooltechx supports OEM and ODM, helping newly established brands reduce costs. Customization is available too.

Product features

IP56(Outdoor): Passed the ingress protection rating certification, effectively protecting the air conditioner cooler from harmful dust and powerful water jet; sheltering the units from tools or wires greater than 2.5mm and water spray, outdoors.

5-10 years lifetime: The air conditioner cooler has a long service life, supporting running continuously for up to 10 years. An easy installation can save you years. Metal cover guarantees its life span.

8 alarm signal outputs: Cooltechx enclosure air conditioner is equipped with all-around alarming functions, including temperature, evaporation, humidity, voltage, and self-test.

Eco-friendly refrigerant: Adopt environmental-friendly refrigeration technology, aligned with the ideals of EPA and UN. Contributing to carbon neutrality and net-zero carbon emission is the common goal of every individual.

Simple installation and customization: The Cooltechx unit makes installation simple; all you have to do is verify the air conditioner by the user manual’s instructions. The unit can be modified to meet unique needs.

A worry-free post-purchase experience: Under warranty, a brand-new product will be supplied to the buyer if the device malfunctions due to production or quality issues.

FAQ

The enclosure air conditioner is easy to install.

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket

2. Do not drag the air conditioner cooler.

3. Connect the power cord to a well-grounded power supplier.  See more from the User Guide.

1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.

2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.

3. Please check the drainage.

After all the preparation and check, just connect terminal I and terminal II to the power source respectively.

Tell our customer service the signal transmission standard of your country, and we can customize it for you.

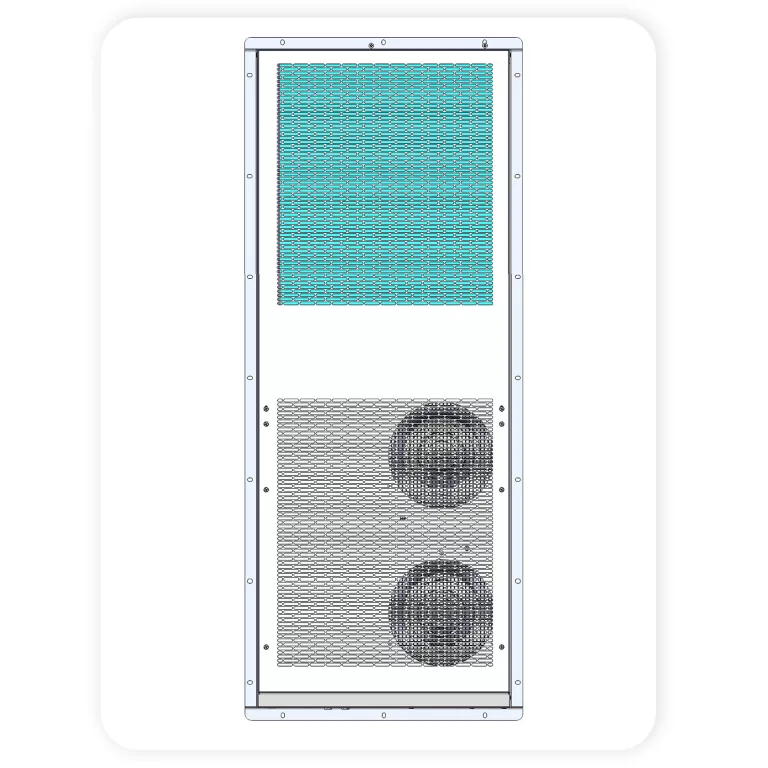

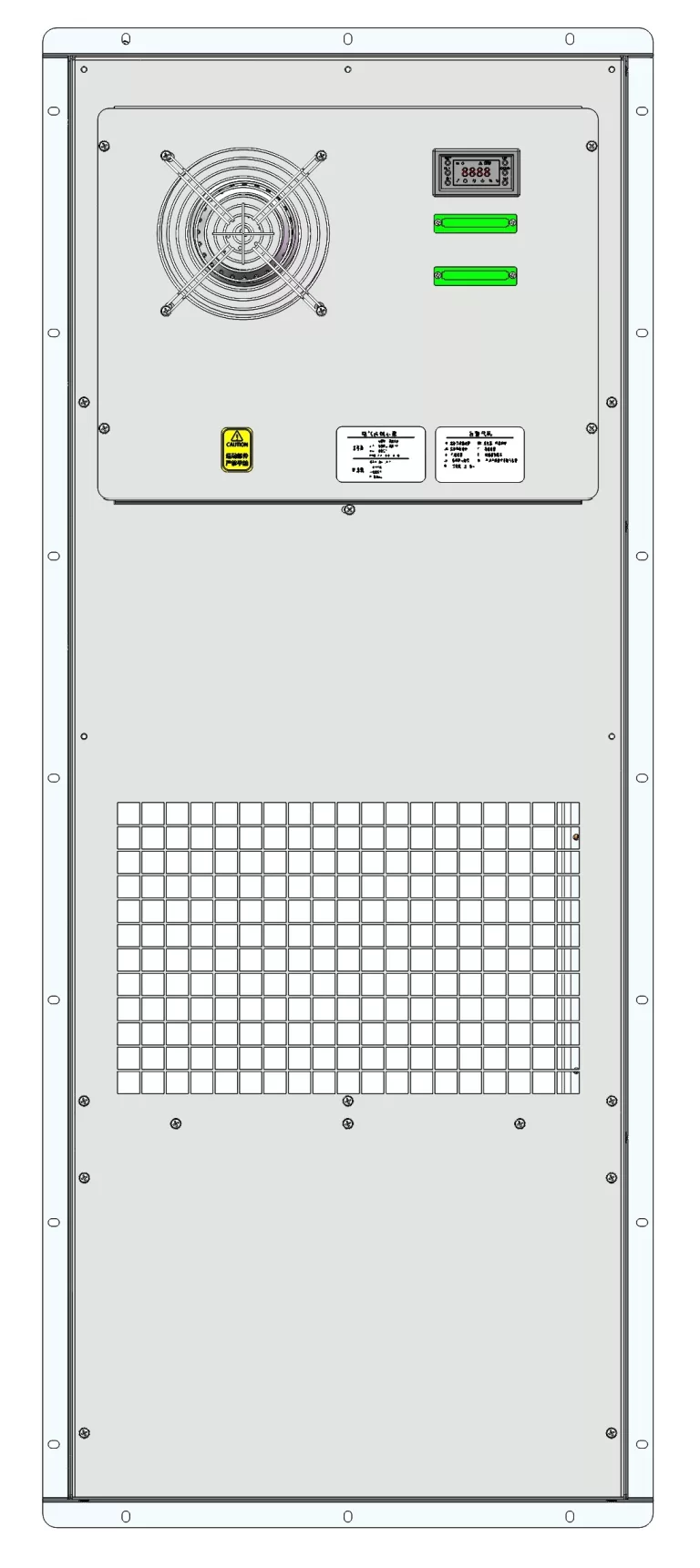

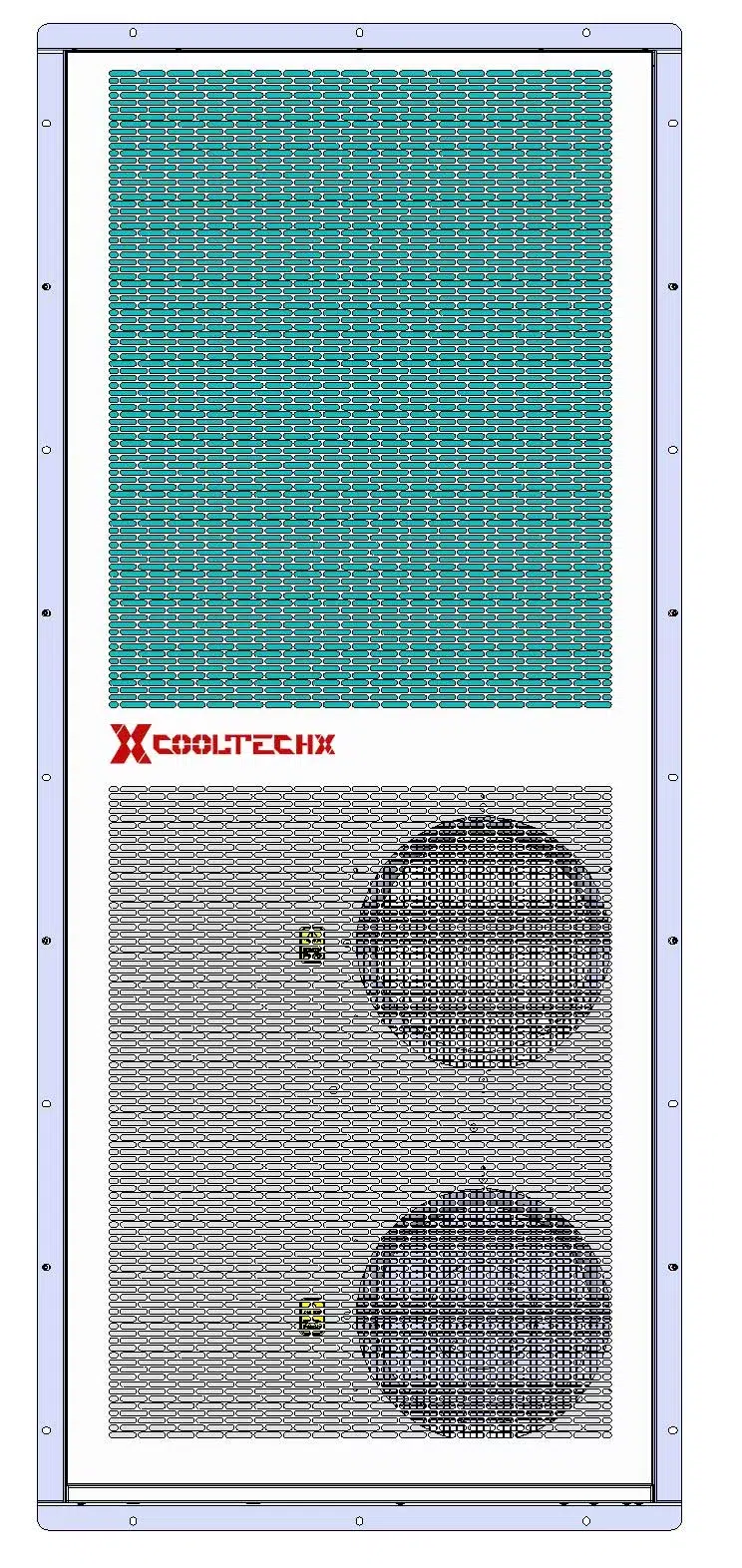

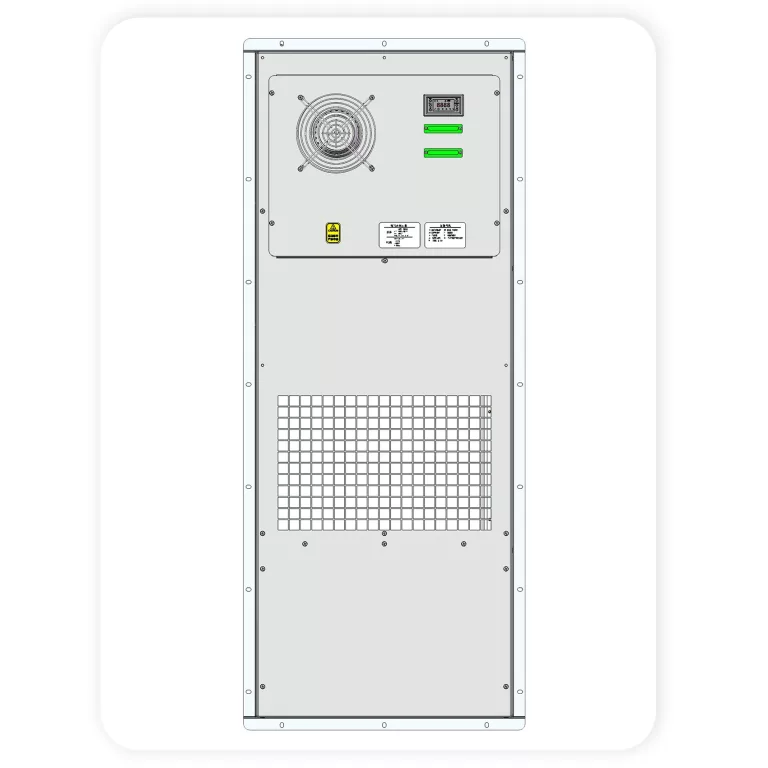

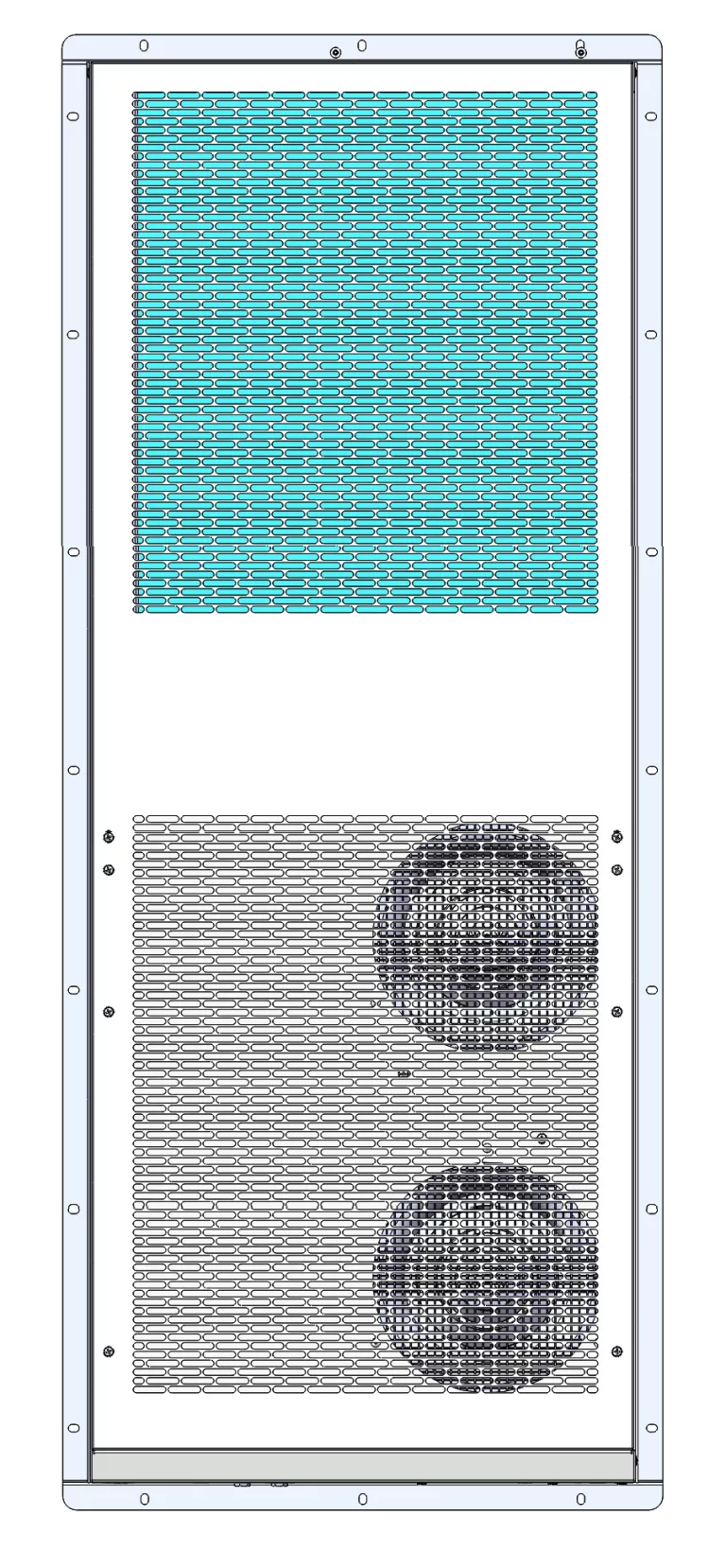

Cabinet Air Conditioner Display

KEY PARTS

To ensure the quality of our products, we use:

Compressor

Highly/Panasonic/Hitachi brand

Compact structure. /Low noise and reliable operation.

Condenser

Bigger copper condenser

Galvanized sheet material

Multilayer, protectionIP56

Thicker and durable metal cover

Fan

Fanstech/Kaku/EBM

Flat design. High efficiency.

Evaporator

Pure copper evaporator-higher effenciency and longer service life


circuit board

Circuit Board

Independent R&D

Customization supported

Factory scene

Self-owned industrial cabinet air conditioner production factory:

● EOM, ODM, and customization supported

● 5 steps quality inspection processes

● Manual quality inspection

To ensure 100% quality inspection of each industrial enclosure air conditioner

Technical parameter

MODEL CTACD4026W
Boundary dimension 1350*500*300mm
Overall dimension 1300*500*300mm
Weight 70Kg
Levels of protection IP54(Indoor)/IP56(Outdoor)
Surface treatment Outdoor powderRAL7035
Refrigeration capacity (L35/L35) 400 0 W
Refrigerating power consumption 2000 W
Operating temperature range -40～55℃
Air volume 550  m³ /h
Noise 70 dB(A)
Cryogen R134a
Condensate management Optional
Power supply system 230V+10% 50/60HZ
Rated current 5.6A
Maximum current 8.2 A
Locked rotor current 20.1A

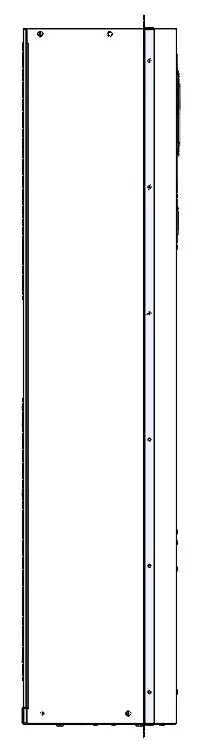

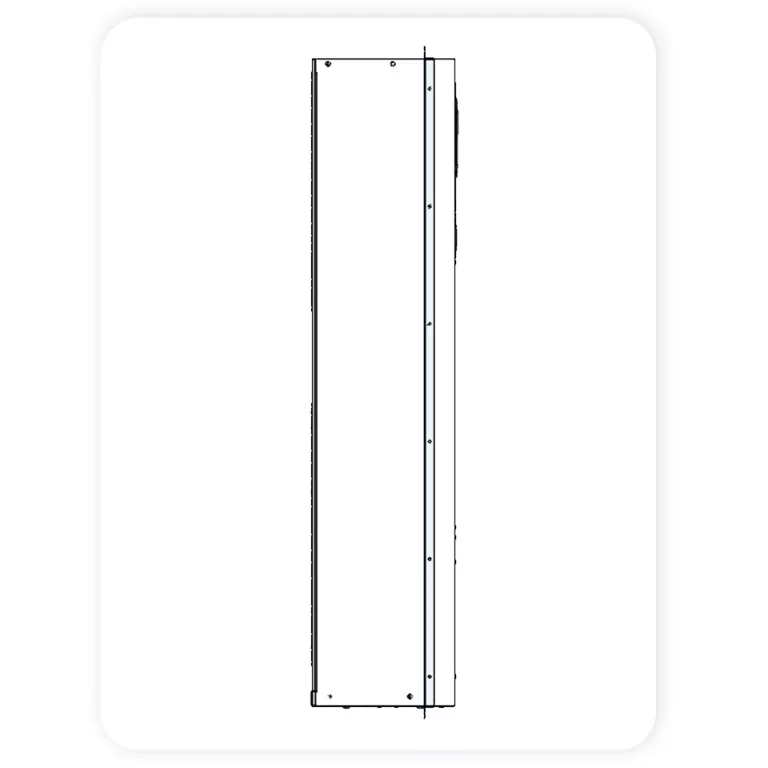

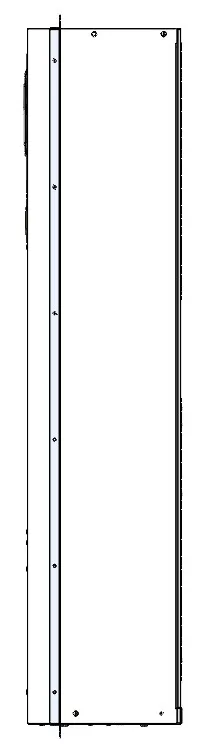

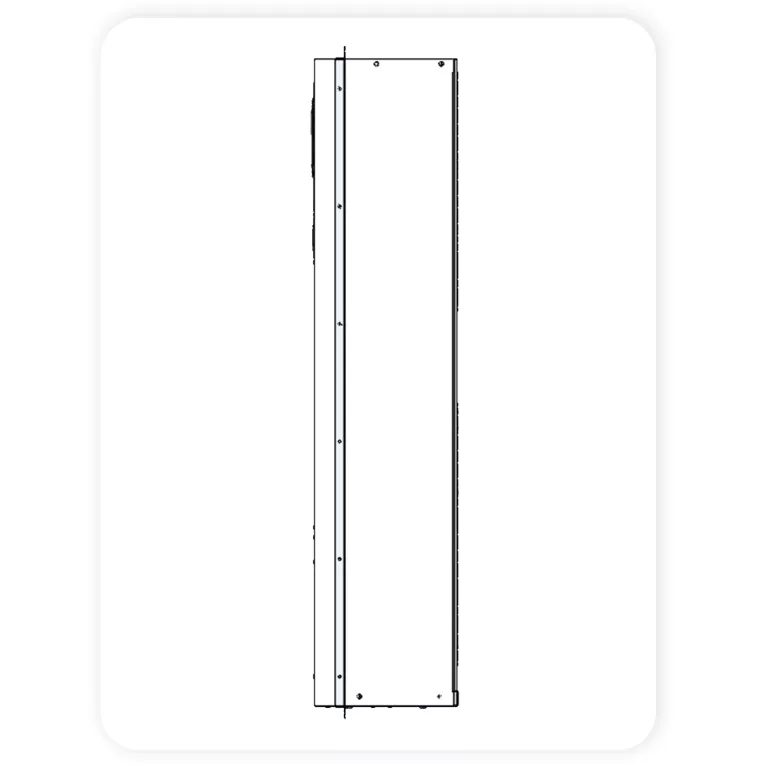

GENERAL ARRANGEMENT

Customized Service Available to Support Any of Your Cabinet (Metric: mm)

Electrical wiring diagram

Power wiring

  • The maximum allowable wire diameter is 2.5mm²
  • L-Power cord
  • N-Power zero line
  • PE- Power Earth

Signal wiring

  • 1-2 4~20mA temperature output
  • 3-4 4~20mA humidity output
  • RS485 5-GND/6-A / 7-B
  • 8-9 Alarm output – fault closed
  • 8-10 Alarm output-fault on

Applications

Embark on the New Journey With Cooltechx

Distribution Cabinet

Control Cabinet

EV Charge Piles

Why Is Temperature Control Important for Machine Running?

Boost Efficiency and Improve Productivity
The service life of electronic components is directly related to the ambient temperature. Generally, electronic components will have a shorter service life for every 10 degrees higher than the normal indoor temperature.
For High temperature environment:
As a result, the operation efficiency of the equipment will decrease and abnormal operation will occur, and the characteristics of the rubber material will also change.
For low temperature environment:
Below the dew point temperature will cause condensation on the surface of the equipment, increasing the risk of equipment corrosion and abnormal operation of the equipment.
Enhance the service life of electronic components and contribute to the efficiency of the enterprise！
