[IP54]: Passed the ingress protection rating certification, effectively protecting the air conditioner cooler from harmful dust and powerful water jet; sheltering the units from tools or wires greater than 2.5mm and water spray, outdoors.
[5-10 years lifetime]: The air conditioner cooler has a long service life, supporting running continuously for up to 10 years. An easy installation can save you years of time. Metal cover guarantees its life span.
[8 alarm signal outputs]: Cooltechex enclosure air conditioner is equipped with all-round alarming functions, including temperature, evaporation, humidity, voltage, and self-test.
[Eco-friendly refrigerant]: Adopting environmentally friendly refrigeration technology tailored to the ideals of EPA and UN. Contributing to carbon neutrality and carbon zero emissions is the common goal of all individuals.
[Easy installation and customization]: The Cooltechex unit allows an easy installation, the only thing you need to be done is to check the air conditioner under the instruction of the user guide. The Unit can be customized according to special demand.
[Worry-free after-sale experience]: During the warranty, once the product is broken down for quality or production problems, the brand-new product will be shipped to the customer.
The enclosure air conditioner is easy to install.
1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket
2. Do not drag the air conditioner cooler.
3. Connect the power cord to a well-grounded power supplier.ย See more from theย User Guide.
1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.
2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.
3. Please check the drainage.
After all the preparation and check, just connect terminal I and terminal II to the power source respectively.
Tell our customer service the signal transmission standard of your country, and we can customize it for you.
To ensure the quality of our products, we use:
Highly/Panasonic/Hitachi brand
Compact structure.ย /Low noise and reliable operation.
Bigger copper condenser
Multilayer, protectionIP56
Thicker and durable metal cover
Fanstech/Kaku/EBM
Flat design. High efficiency.
Pure copper evaporator-higher effenciency and longer service life
Independent R&D
Customization supported
Self-owned industrial air-conditioning production factory:
โ Air conditioning OEM industrial air conditioning solution customization
โ 5 steps quality inspection processes
โ Manual quality inspection
To ensure 100% quality inspection of each industrial enclosure air conditioner

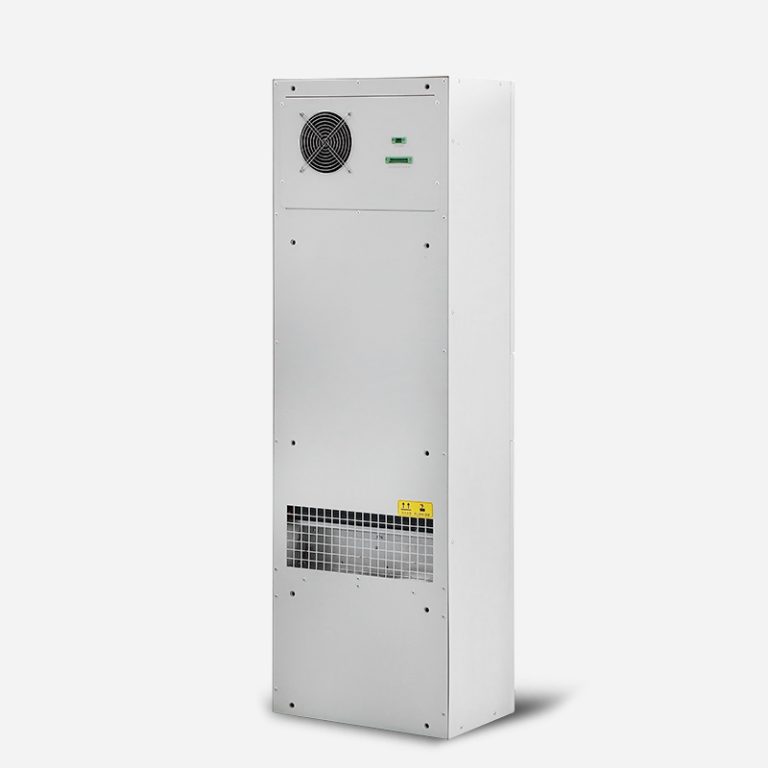

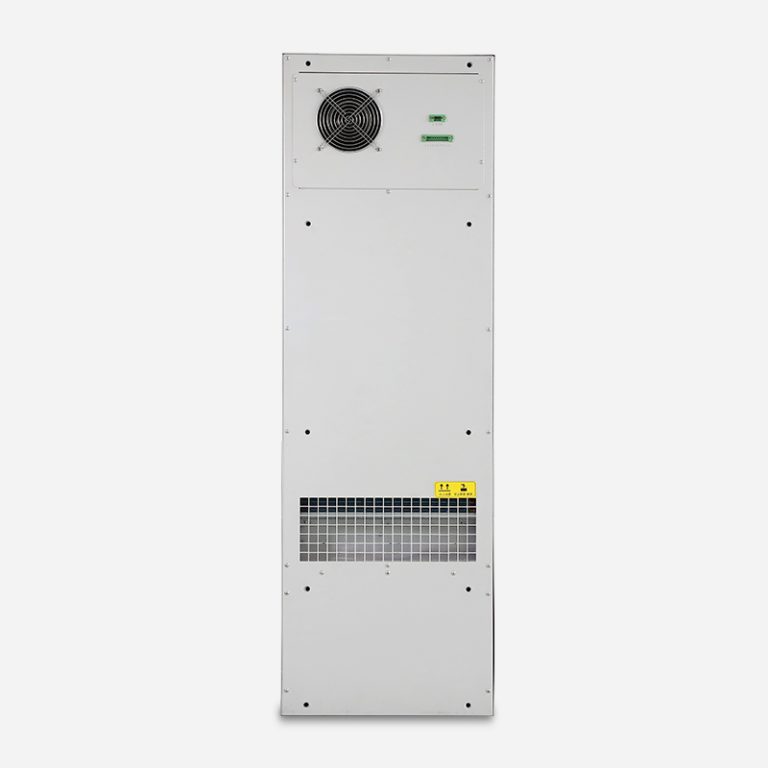

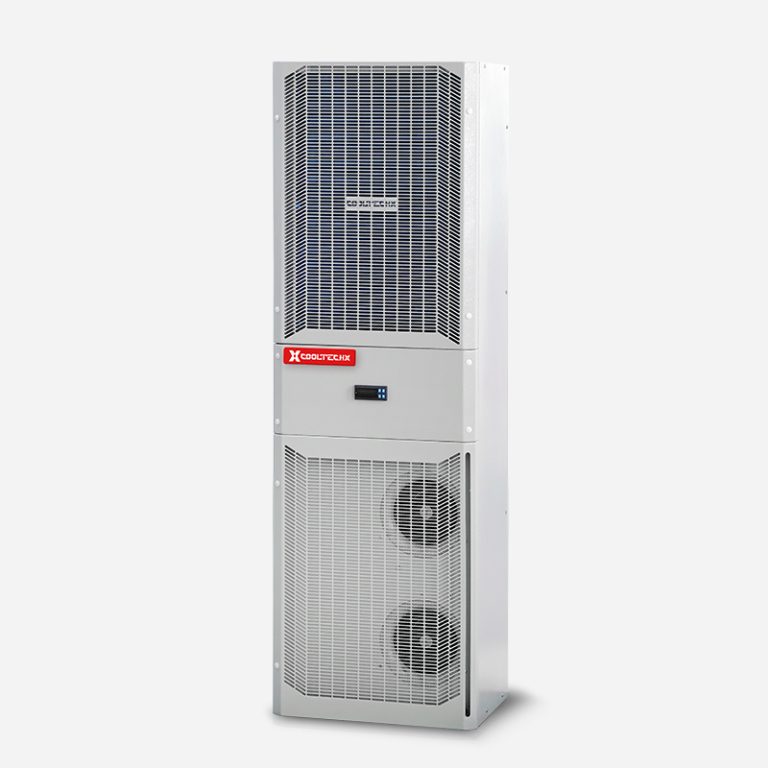

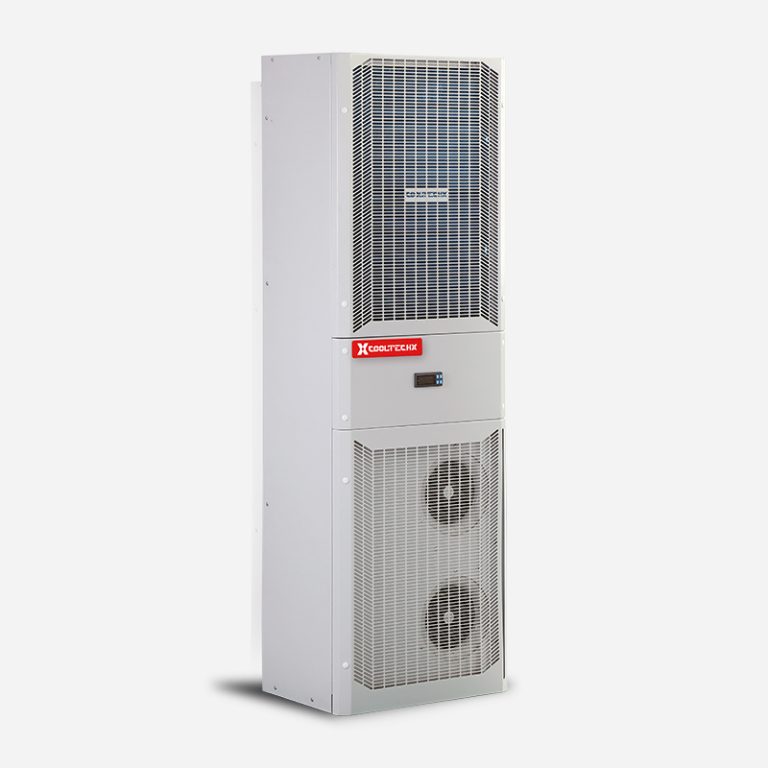

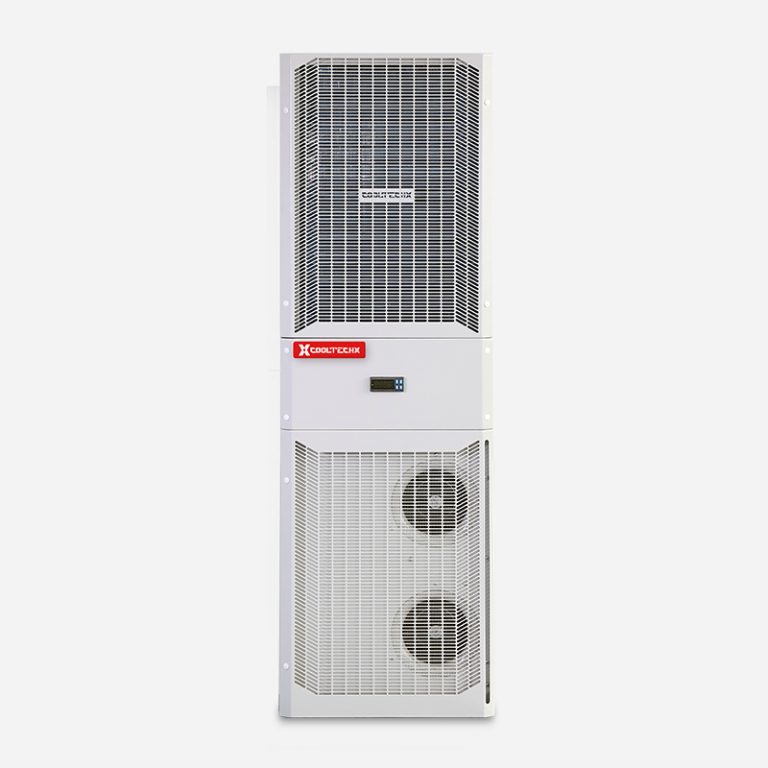

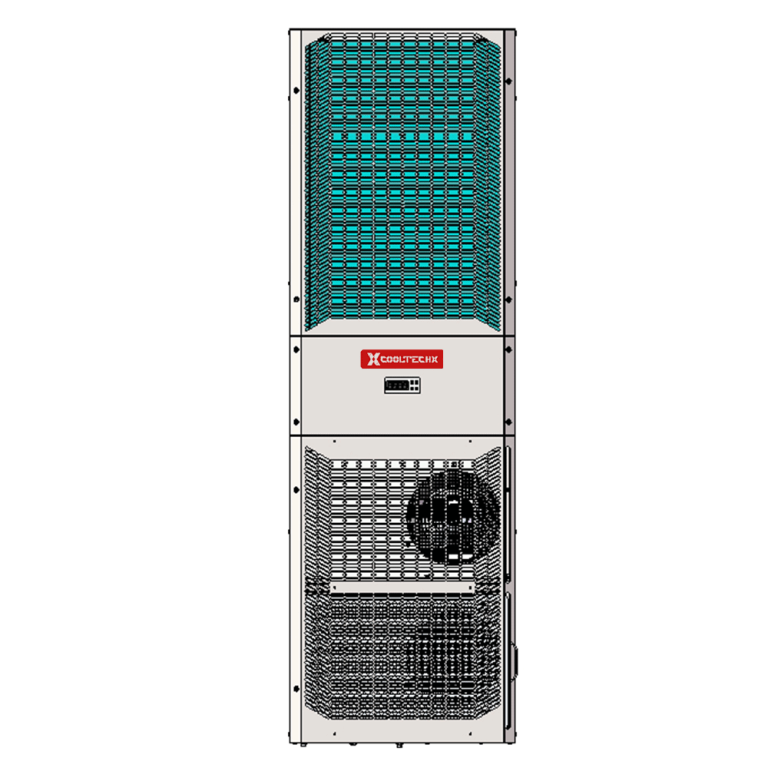

| MODEL | CXACG4026N |
| Overall dimension | 1580*500*340mm |
| Weight | 60Kg |
| Levels of protection | IP54๏ผIndoor๏ผ |
| Surface treatment | Outdoor powderRAL7035 |
| Refrigerating capacity (L35/L35) | 4000W |
| Refrigerating power consumption | 1650W |
| Operating temperature range | -40๏ฝ55โ |
| Air volume5 | 520ย mยณ/h |
| Noise | 68ย dB(A) |
| Cryogen | R134a |
| Condensate management | Optional |
| Power supply system | AC 230V+10% ย 50/60HZ |
| Rated current | 7.5A |
| Maximum current | 17A |
| Locked rotor current | 36A |

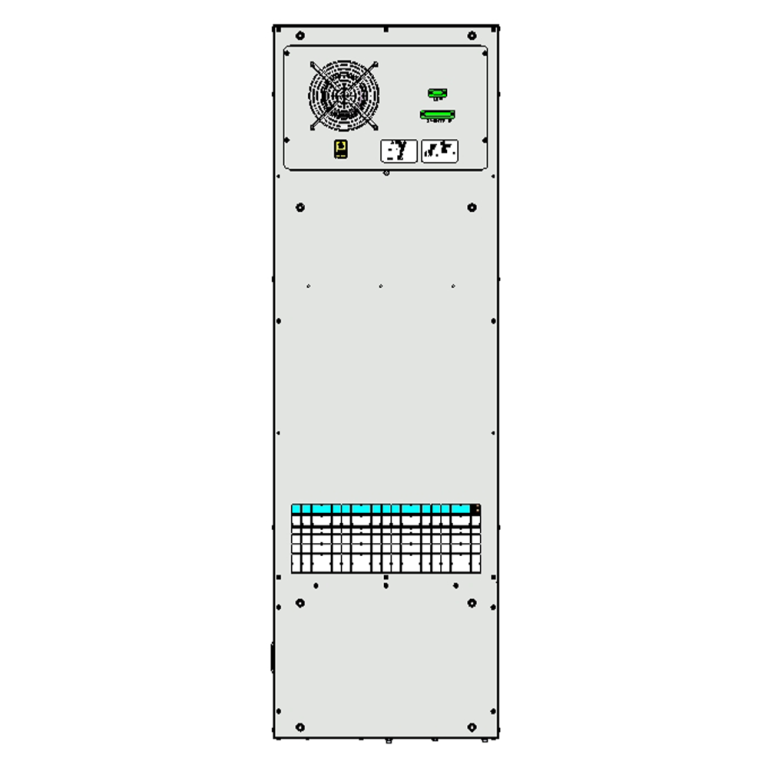

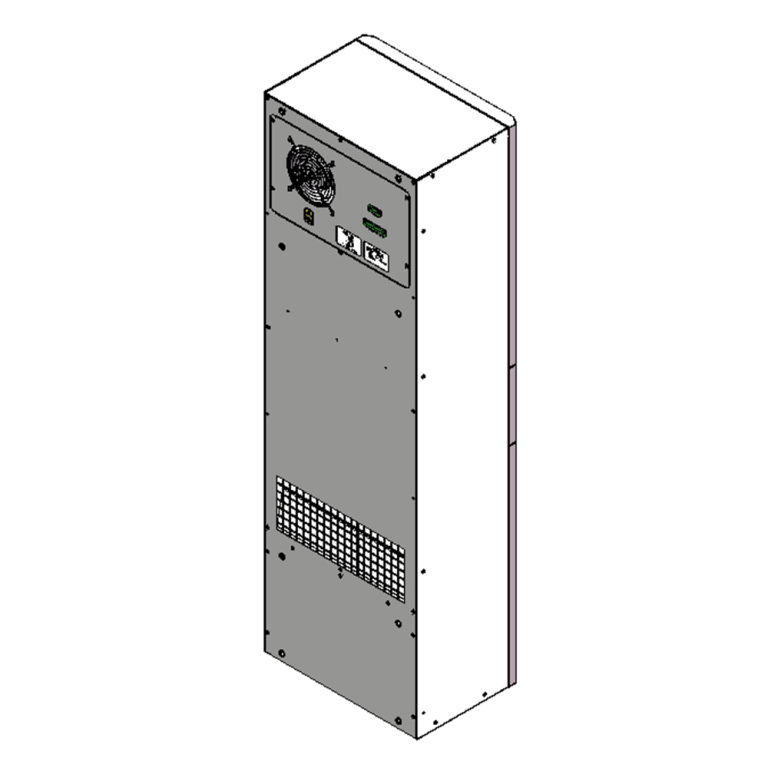

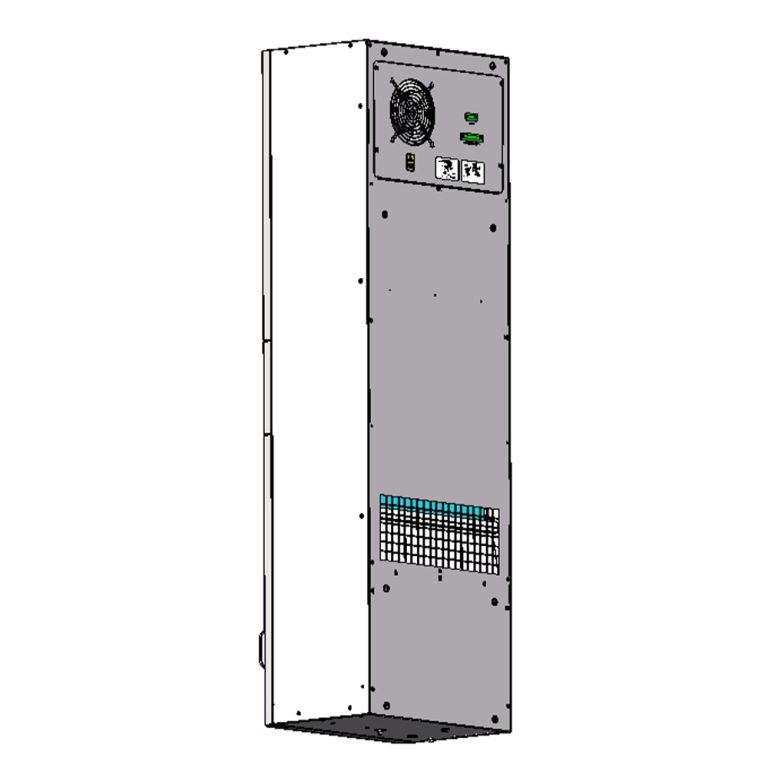

Customized Service Available to Support Any of Your Cabinet (Metric: mm)
Power wiring
Signal wiring
Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.
Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effectiveย cooling solution.
Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.
