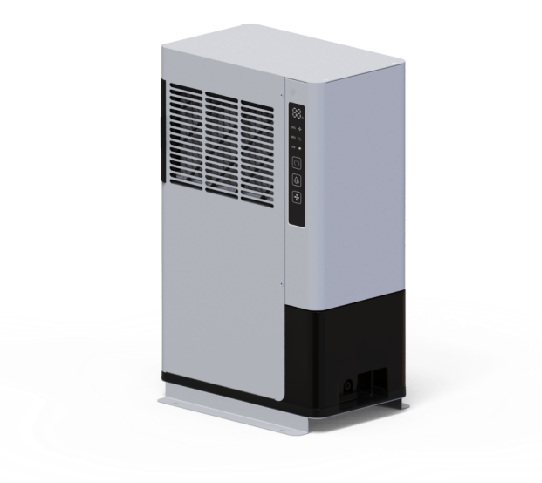

CT-Industrial rotary dehumidifier

The rotary dehumidifier uses silica gel coated on the rotor to physically adsorb moisture from the air onto the porous synthetic silica gel. In the rotor regeneration zone, the adsorbed moisture in the silica gel pores is heated and vaporized, then sent to the inlet of the AC heat exchanger, forming high-temperature, high-humidity air. This air then passes through the heat exchanger, which has already been cooled by the indoor cool and humid air, causing condensation due to the dew point difference, and the condensed water is then discharged.

Product Highlights:

High Dehumidification Efficiency: The use of silica gel on the rotor allows for efficient moisture absorption from the air, significantly reducing humidity levels in industrial environments.
Energy-Efficient Operation: The rotary design and regeneration process are energy-efficient, minimizing power consumption while maintaining effective dehumidification performance.
Continuous Operation: The rotary dehumidifier can operate continuously without frequent downtime for maintenance, making it ideal for high-demand industrial settings.
Wide Operating Temperature Range: It can function effectively in a wide range of temperatures and humidity levels, making it suitable for diverse industrial applications.
Low Maintenance: The robust construction and durable materials used in the dehumidifier ensure a long lifespan with minimal maintenance requirements.
Environmentally Friendly: The use of silica gel as a desiccant is environmentally friendly, as it does not rely on chemical refrigerants, reducing its environmental impact.
Condensate Recovery: The system efficiently recovers moisture, which can be used for other processes or safely discharged, ensuring no waste of water or energy.
Flexible and Customizable: The dehumidifier can be tailored to meet specific industrial needs, with adjustable settings for different levels of humidity and air flow.

Chat Now

GLOBAL PARTNERSHIP

Establish Intimidate Partnerships with International Companies

Why Cooltechx?

Distinguished R&D Staff, Supportive After-sale Service, and Specialized Customization

Cooltechx enclosure air conditioner is designed to maintain a constant temperature for your machine operation to ensure efficiency.

Cooltechx enclosure air conditioner is easy to install, all you need to do is prepare tools and operate according to the User Guide.

Cooltechx has completed many tests for leading power companies such as Taikai Power and Taishan High Voltage, and all the cabinet air conditioners are in a good performance.

Cooltechx supports OEM and ODM, helping newly established brands reduce costs. Customization is available too.

Product features

Flexible Installation Options: The dehumidifier supports both floor-standing and wall-mounted installation, making it adaptable for various spaces and requirements.
Efficient Dehumidification: Offers two settings for dehumidification capacity—3L/day at high settings and 1.5L/day at low settings (measured at 30°C, 80% RH)—providing flexibility for different environmental needs.
Energy-Saving Operation: Features low power consumption with two modes—170W on low setting and 340W on high setting—ensuring efficient operation while minimizing energy costs.
Wide Operating Temperature Range: Designed to function reliably in extreme conditions, with a working temperature range of -15°C to +55°C.
Low Noise Performance: Operates at a maximum noise level of just 41dB(A), ensuring a quiet working environment.
Compact and Lightweight Design: With dimensions of 410x255x150mm and a net weight of only 6kg, the dehumidifier is compact, lightweight, and easy to install or relocate.
Optional Communication Interface: Equipped with an optional RS485 communication interface for remote monitoring and control, enhancing usability in smart systems.
Durable and Reliable: Built with high-quality components to ensure consistent performance and longevity, even in demanding industrial environments.

FAQ

How to Install the Outdoor Air Conditioner?

The enclosure air conditioner is easy to install.

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket

2. Do not drag the air conditioner cooler.

3. Connect the power cord to a well-grounded power supplier. See more from the User Guide.

What You Should Do Before the Installation?

1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.

2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.

3. Please check the drainage.

How to Start the Enclosure Air Conditioner?

After all the preparation and check, just connect terminal I and terminal II to the power source respectively.

How to Solve the Signal Transmission Problem?

Tell our customer service the signal transmission standard of your country, and we can customize it for you.

Cabinet Air Conditioner Display

KEY PARTS

To ensure the quality of our products, we use:

Compressor

Highly/Panasonic/Hitachi brand

Compact structure. /Low noise and reliable operation.

Condenser

Bigger copper condenser

Galvanized sheet material

Multilayer, protectionIP56

Thicker and durable metal cover

Fan

Fanstech/Kaku/EBM

Flat design. High efficiency.

Evaporator

Pure copper evaporator-higher effenciency and longer service life

Circuit Board

Independent R&D

Customization supported

Factory scene

Self-owned industrial cabinet air conditioner production factory:

● EOM, ODM, and customization supported

● 5 steps quality inspection processes

● Manual quality inspection

To ensure 100% quality inspection of each industrial enclosure air conditioner

Technical parameter

GENERAL ARRANGEMENT

Electrical wiring diagram

Applications

Embark on the New Journey With Cooltechx

Distribution Cabinet

Control Cabinet

EV Charge Piles

Why Is Temperature Control Important for Machine Running?

Boost Efficiency and Improve Productivity

The service life of electronic components is directly related to the ambient temperature. Generally, electronic components will have a shorter service life for every 10 degrees higher than the normal indoor temperature.

For High temperature environment:

As a result, the operation efficiency of the equipment will decrease and abnormal operation will occur, and the characteristics of the rubber material will also change.

For low temperature environment:

Below the dew point temperature will cause condensation on the surface of the equipment, increasing the risk of equipment corrosion and abnormal operation of the equipment.

Enhance the service life of electronic components and contribute to the efficiency of the enterprise！

Cooltec Advantage

Unveil the New Stage of Higher Efficiency

Professional Staff

Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.

OEM & ODM

Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effective cooling solution.

Sample Avaiable

Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.

Technical & Service Team Support

Reliable R&D and After-sales Team Team

Professional Technical Team

Our technical team will guide and support you from purchase to maintenance. For oversea customers offer video conference for product introduction and guidance according your time.

Guidance Maintenance Team

There will be a professional after-sales team to follow up, and regularly provide professional advice on cleaning, maintenance. If you have any problems with the products or after sales, you can contact our after sales team at the first time, and they will give professional advice at the first time.

After-sales Team

First-class after-sales service, to provide end customers with full technical protection, empowering dealers to provide technical training, website construction, market development ,and promotional support.
If there are defective or incorrectly shipped goods, please contact us within 5 days of receiving the goods.
