[IP54 (indoor)]: An IP54 rating means that the product is protected against contamination by a limited amount of dust and other particles. In addition, it reliably protects against water splashes from all directions.
[5-10 years lifetime]: The Water Coolerย cooler has a long service life, supporting continuous operation for up to 10 years. An easy installation can save you years of time. Its metal cover guarantees its longevity.
[8 alarm signal outputs]: Cooltechx Water Cooler is equipped with all-round alarming functions, including temperature, evaporation, humidity, voltage, and self-test.
[Eco-friendly refrigerant]: Adopt environmental-friendly refrigeration technology, aligned with the ideals of EPA and UN. Making a contribution to carbon neutrality and carbon dioxide emissions is the common goal of every individual.
[Easy installation and customization]: The Cooltechx unit allows for easy installation, all you have to do is follow the instructions in the user guide about checking the Water Cooler. It can be customized to meet special needs
The enclosure air conditioner is easy to install.

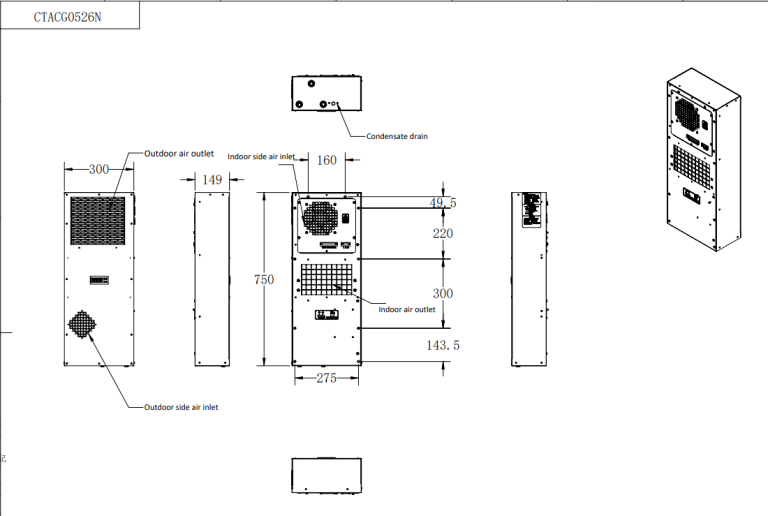

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket
2. Do not drag the air conditioner cooler.
3. Connect the power cord to a well-grounded power supplier.ย See more from theย User Guide.
1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.
2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.
3. Please check the drainage.
After all the preparation and check, just connect terminal I and terminal II to the power source respectively.
Tell our customer service the signal transmission standard of your country, and we can customize it for you.
To ensure the quality of our products, we use:
Highly/Panasonic/Hitachi brand
Compact structure.ย /Low noise and reliable operation.
Bigger copper condenser
Multilayer, protectionIP56
Thicker and durable metal cover
Fanstech/Kaku/EBM
Flat design. High efficiency.
Pure copper evaporator-higher effenciency and longer service life
Independent R&D
Customization supported
Self-owned industrial cabinet air conditioner production factory:
โ EOM, ODM, and customization supported
โ 5 steps quality inspection processes
โ Manual quality inspection
To ensure 100% quality inspection of each industrial enclosure air conditioner
| MODEL | CTACG0526N |
| Overall dimension | 750*300*150mm |
| Weight | 23Kg |
| Levels of protection | IP54ย |
| Surface treatment | Outdoor powderRAL7035 |
| Refrigerating capacity (L35/L35) | 500W |
| Refrigerating power consumption | 280W |
| Operating temperature range | 20๏ฝ50โ |
| Air volume | 210ย mยณ/h |
| Noise | 60ย dB(A) |
| Cryogen | R134a |
| Condensate management | Optional |
| Power supply system | 230Vยฑ10% ย 50/60HZ |
| Maximum current | 2.5A |
| Locked rotor current | 5A |
Customized Service Available to Support Any of Your Cabinet (Metric: mm)
Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.
Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effectiveย cooling solution.
Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.
Get In Touch With Cooltechx
