Product Highlights:
Company Profile.
Cooltec is a technology-oriented company that positions itsel its an international enterprise. We integrate production, research and development, and sales to provide comprehensive, global-scale solutions across the entire industry chain. With a strong presence in international markets and significant growth potentialive are dedicated to becoming a globally competitive world-class enterprise. As a responsible player in addressing environmental challenges, we have developed environmentally beneficial and distinctive products, accompanied by corresponding solutions. Our focus lies in creating products that contribute positively to the environment while offering unique features. We understand the importance of providing sustainable solutions that address customer needs while minimizing ecological impact. Our overarching objective is to establish Cooltec as a globally competitive enter prise of exceptional caliber. We are committed to continuously striving for excellen ce in all aspects of our operations. This includes technological advancements, customer satisfaction, and maintaining our position as a frontrunner in the industry. Cooltec remains steadfast in our pursuit of excellence and will persistently endeavor to achieve our goals.
The enclosure air conditioner is easy to install.

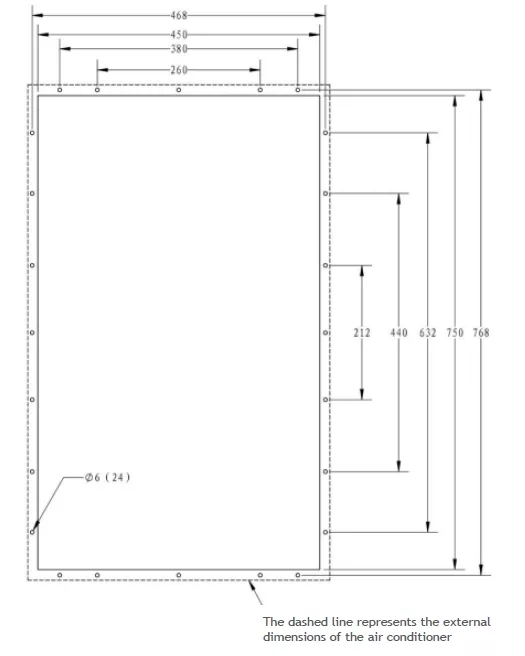

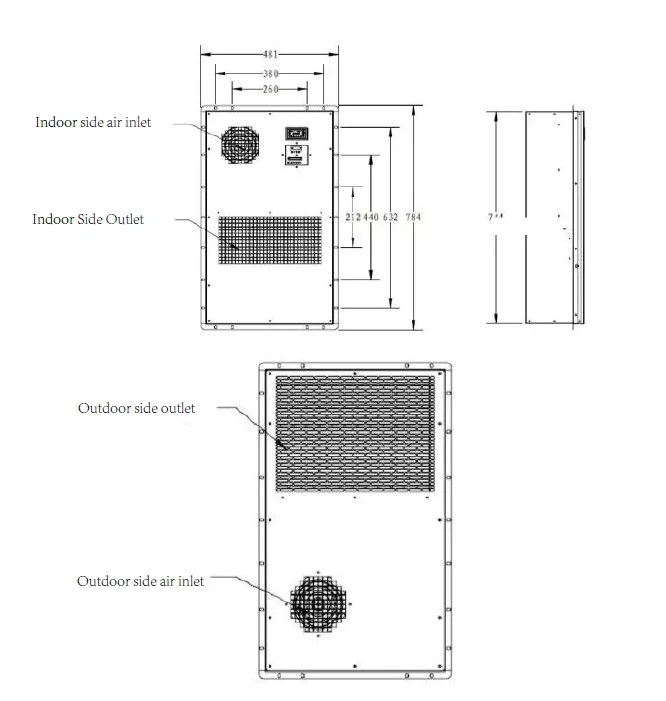

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket
2. Do not drag the air conditioner cooler.
3. Connect the power cord to a well-grounded power supplier.ย See more from theย User Guide.
1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.
2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.
3. Please check the drainage.
After all the preparation and check, just connect terminal I and terminal II to the power source respectively.
Tell our customer service the signal transmission standard of your country, and we can customize it for you.
To ensure the quality of our products, we use:
Highly/Panasonic/Hitachi brand
Compact structure.ย /Low noise and reliable operation.
Bigger copper condenser
Multilayer, Thicker, and durable metal cover
Fanstech/Kaku/EBM
Flat design. High efficiency.
Pure copper evaporator-higher effenciency and longer service life
Independent R&D
Customization supported
Self-owned industrial air-conditioning production factory:
โ Air conditioning OEM industrial air conditioning solution customization
โ 5 steps quality inspection processes
โ Manual quality inspection
To ensure 100% quality inspection of each industrial enclosure air conditioner
| Model | CTACT1526W006 |
| Overall dimension(flange) | 582*352*175mm |
| Weight | ย 23KG |
| Cooling capacity (L35/L35)๏ผ | 1500W |
| Power consumption(L35/L35)๏ผ | 280W |
| Operating temperature range๏ผ | ย -40~55ยฐC |
| Noise๏ผ | 60dB(A) |
| Air volume๏ผ | 180m3/h |
| Max nominal current: | 2.5A |
| Starting current: | 5A |
| Refrigerant๏ผ | R134a |
| Power supply๏ผ | AC 230Vๅฃซ10% 50Hz |
| IP code | IP56 |
| Finish | Outdoor powderRAL7035 |
ย ย ยทย Compressor: We use renowned internationalย compressorย brands to ensure high efficiency and reliability. Optional variable-frequency systems for energy savings.
ย ย ย ย ยทย EC Centrifugal Fan: Features infinitely adjustable air volume, ensuring energy efficiency, low noise, and precise airflow control.
ย ย ย ยทย Glycol Solution Refrigeration: Utilizes glycol solution circulation with high-efficiency heat exchangers for reliable cooling without freezing risk.
ย ย ย ยทย High-Efficiency Water Pump: Includes high-efficiency imported water pumps with optional variable-frequency pumps for precise flow control and energy savings.
ย ย ย ย ยทย Integrated Liquid Cooling: One-stop solution with integrated liquid cooling, piping, and coolant for reliability.
ย ย ย ย ยทย Temperature Control: Expert-level temperature control with dynamic fault detection, alarms, and remote monitoring support. Auto-start on incoming calls.
ย ย ย ย ยทย Environmentally Friendly Refrigerant: Uses eco-friendly R410A refrigerant for continuous and reliable cooling in harsh outdoor conditions.
ย ย ย ยทย Safety Features: Equipped with power protection, high/low voltage safeguards, overheating protection, electric heating overload protection, and water flow loss protection.
Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.
Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effectiveย cooling solution.
Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.
Get In Touch With Cooltechx
