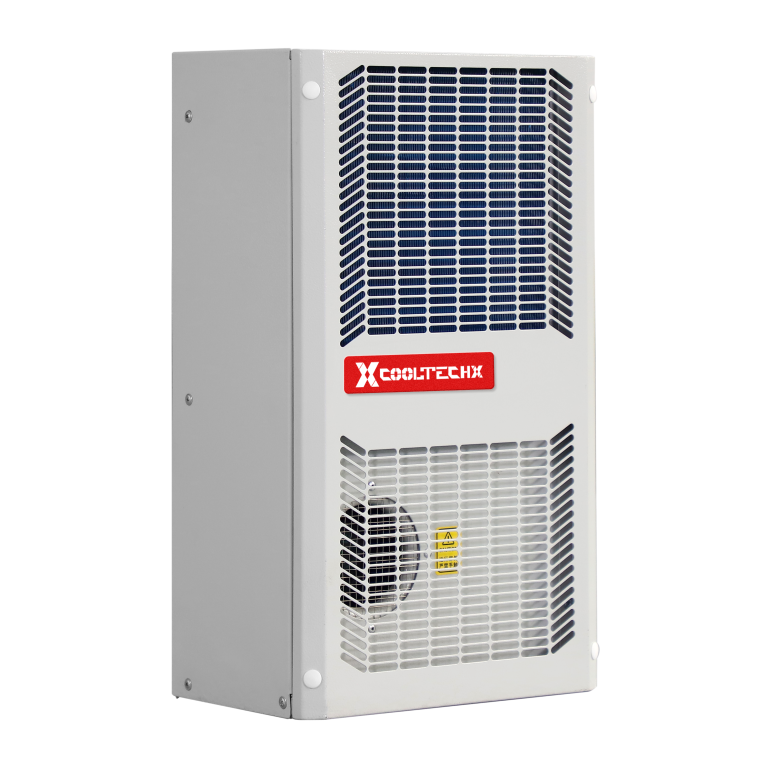

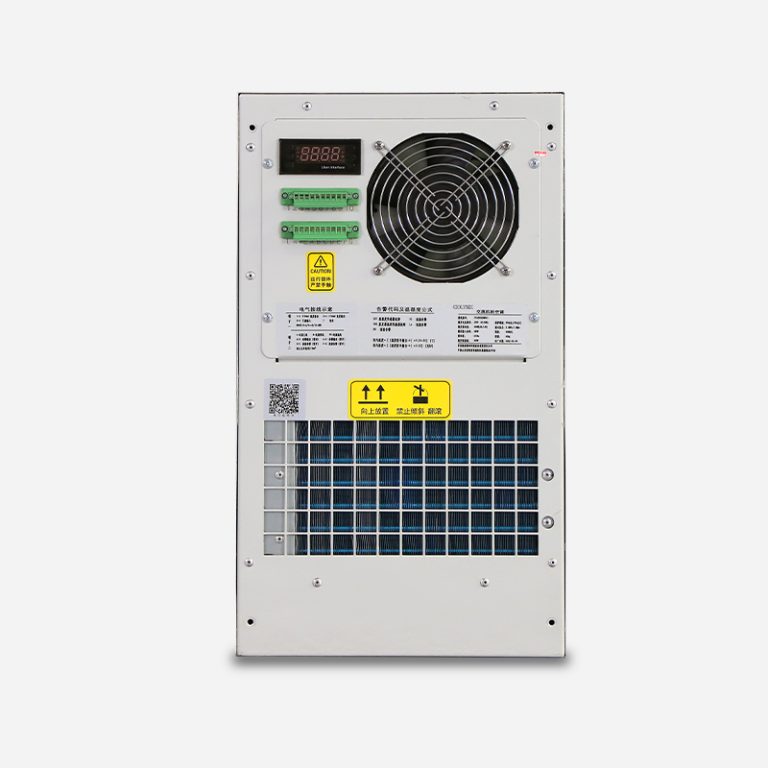

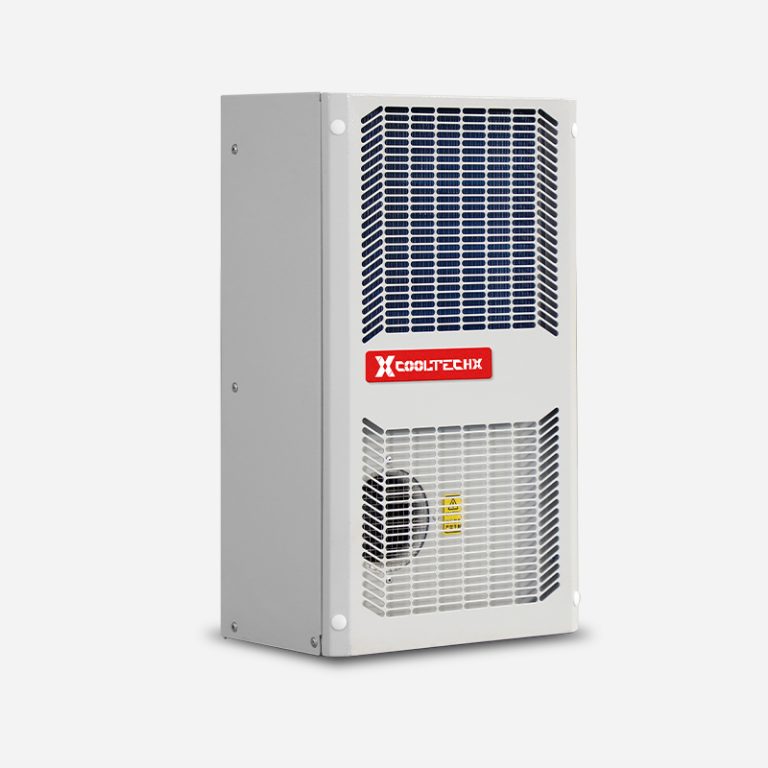

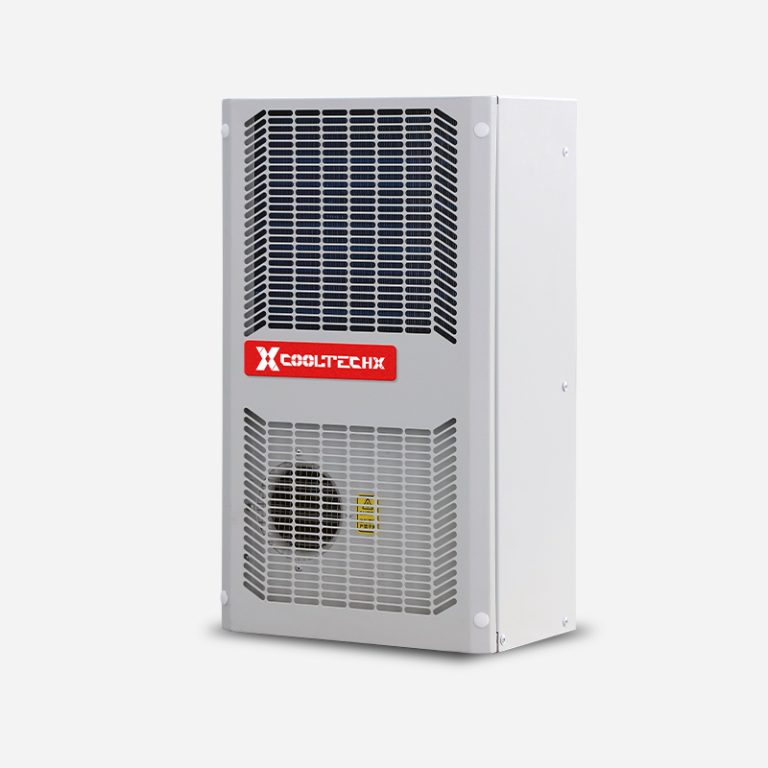

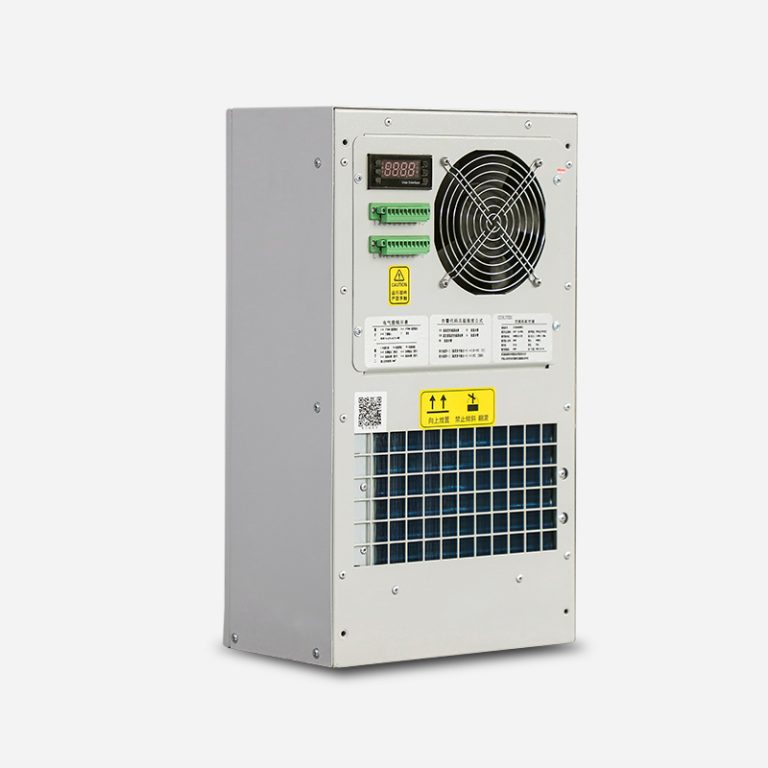

600W AC Outdoor Air Conditioner Cooltechx CXACD0626W001

Charging Pile | Cooling system

Product Highlights:

Protect thermolectric cooler from harmful dust: IP56
Longer service life: work for up to 10 years
8 alarm signal output: equipped with different alarming functions
R134a eco-friendly refrigerant: meet the requirement of ROHS
Modbus supported and RS485 terminal: make remote monitoring easy to achieve
Specialized Customization: Cooltechx supports customized enclosure air conditioner
Adjustable cooling capacity: 800W/ 1500W/ 2500W / 4000W /7500W /Customized Available

Chat Now

GLOBAL PARTNERSHIP

Establish Intimidate Partnerships with International Companies

Why Cooltechx?

Distinguished R&D Staff, Supportive After-sale Service, and Specialized Customization

Cooltechx enclosure air conditioner is designed to maintain a constant temperature for your machine operation to ensure efficiency.

Cooltechx enclosure air conditioner is easy to install, all you need to do is prepare tools and operate according to the User Guide.

Cooltechx has completed many tests for leading power companies such as Taikai Power and Taishan High Voltage, and all the cabinet air conditioners are in a good performance.

Cooltechx supports OEM and ODM, helping newly established brands reduce costs. Customization is available too.

Product features

[degree of protection:IP56]: Certified against the ingress protection ration; under the indoor condition, it can protect the air conditioner from dust and high pressure water jet; in the factory, it can prevent the damage from tools or wires and low pressure water spray.

[Up to 10 years service time]: The air conditioning ac system has a life span, supporting running constantly for about 5 to 10 years. An very easy installation can conserve you years of time. Steel cover assures its life expectancy.

[Worry-free after-sale experience]: Within during the warrant period, if the product is broken down for quality or production problems, the brand-new product will be shipped to the customer.

[Small space covered]: The enclosure air conditioner has a small size which means it takes a small space and play a big role. Besides, the cover of the unit is metal hence it is durable.

[Customized Cabinet Solutions Unit]: Cooltechx supports customize enclosure air conditioner according to different conditioner, purpose, and size.

FAQ

How to Install the Outdoor Air Conditioner?

The enclosure air conditioner is easy to install.

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket

2. Do not drag the air conditioner cooler.

3. Connect the power cord to a well-grounded power supplier. See more from the User Guide.

What You Should Do Before the Installation?

1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.

2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.

3. Please check the drainage.

How to Start the Enclosure Air Conditioner?

After all the preparation and check, just connect terminal I and terminal II to the power source respectively.

How to Solve the Signal Transmission Problem?

Tell our customer service the signal transmission standard of your country, and we can customize it for you.

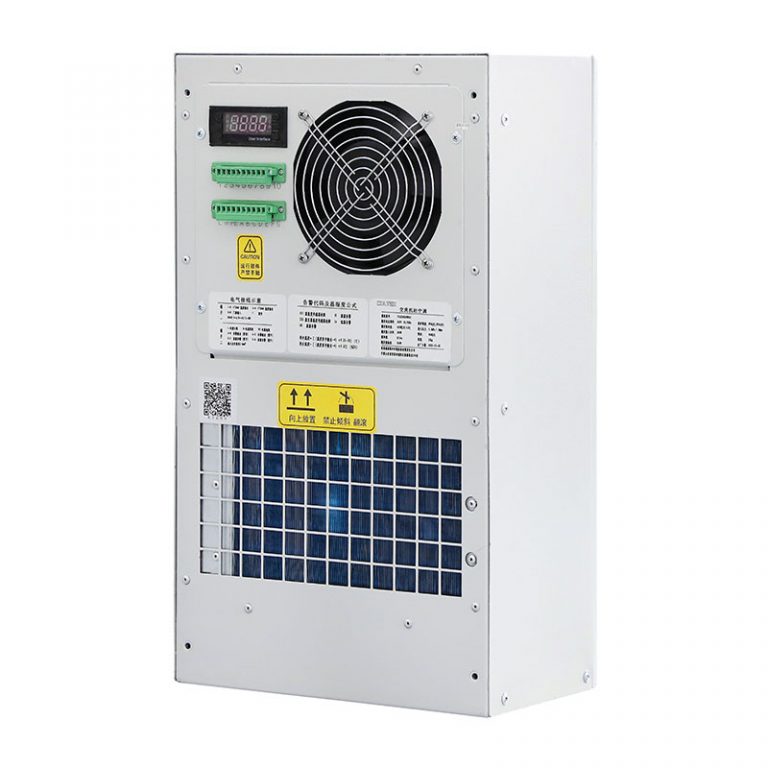

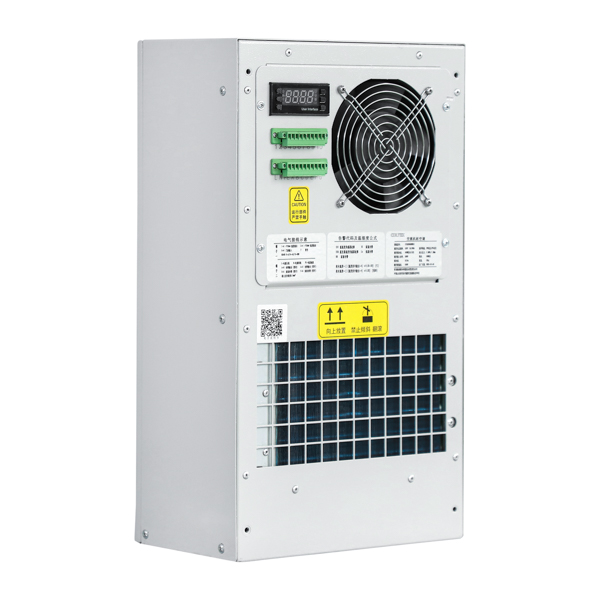

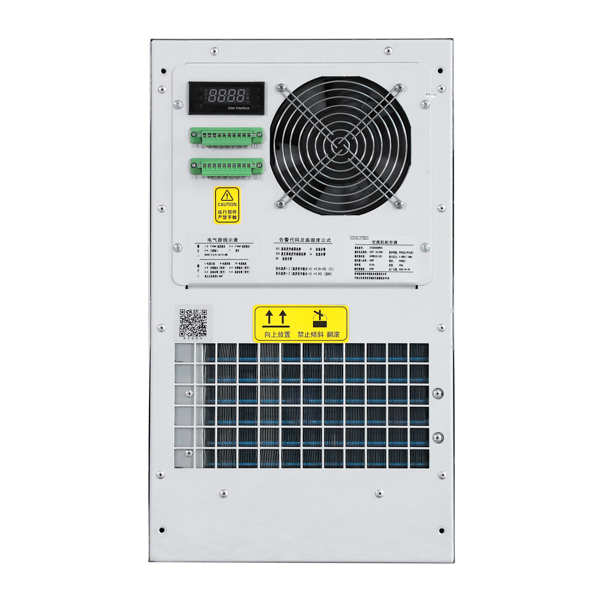

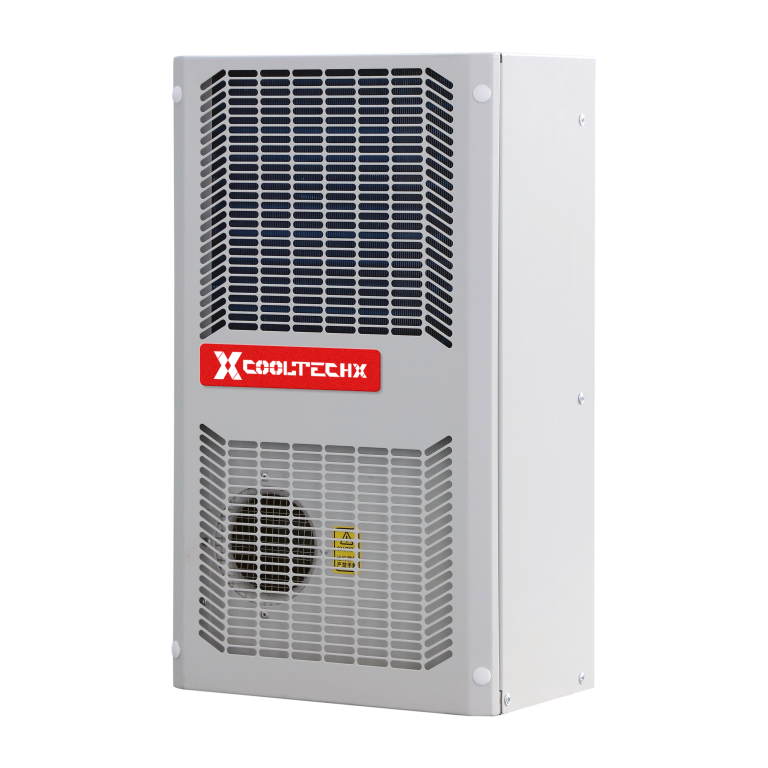

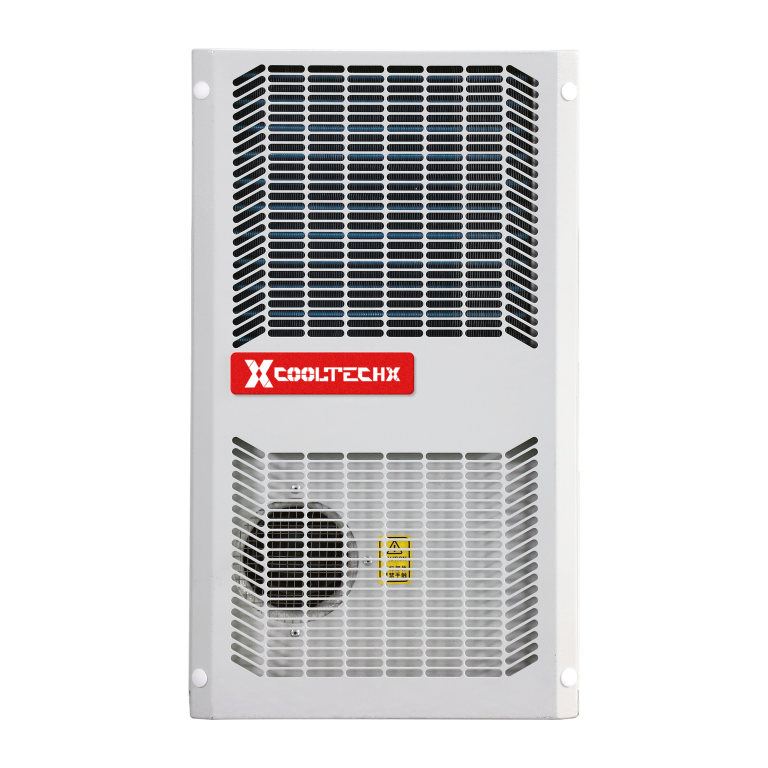

Cabinet Air Conditioner Display

KEY PARTS

To ensure the quality of our products, we use:

Compressor

Highly/Panasonic/Hitachi brand

Compact structure. /Low noise and reliable operation.

Condenser

Bigger copper condenser

Galvanized sheet material

Multilayer, protectionIP56

Thicker and durable metal cover

Fan

Fanstech/Kaku/EBM

Flat design. High efficiency.

Evaporator

Pure copper evaporator-higher effenciency and longer service life

Circuit Board

Independent R&D

Customization supported

Factory scene

Self-owned industrial cabinet air conditioner production factory:

● EOM, ODM, and customization supported

● 5 steps quality inspection processes

● Manual quality inspection

To ensure 100% quality inspection of each industrial enclosure air conditioner

Technical parameter

MODEL	CXACD0626W
Boundary dimension	*842407206* mm
Overall dimension	*802370206* mm
Weight	35Kg
Levels of protection	IP56
Surface treatment	Outdoor powderRAL7035
Refrigerating capacity (L35/L35)	1000W
Refrigerating power consumption	410W
Heating capacity	1000W
Operating temperature range	-40～55℃
Air volume	366 m3/h
Noise	65 dB(A)
Cryogen	R134a
Condensate management	Optional
Power supply system	230V+10% 50/60HZ
Rated current	2A
Maximum current	3.5A
Locked rotor current	5.4A

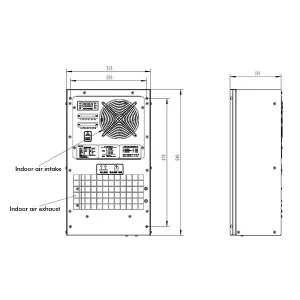

GENERAL ARRANGEMENT

Customized Service Available to Support Any of Your Cabinet (Metric: mm)

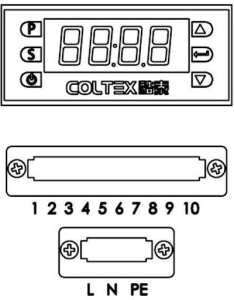

Electrical wiring diagram

Power wiring

The maximum allowable wire diameter is 2.5mm²
L- Power cord
N- Power zero line
PE- Power Earth

Signal wiring

1-2 4~20mA temperature output
3-4 4~20mA humidity output
RS485 5-GND/6-A / 7-B
8-9 Alarm output – fault closed
8-10 Alarm output – fault on

Applications

Embark on the New Journey With Cooltechx

Distribution Cabinet

Control Cabinet

EV Charge Piles

Why Is Temperature Control Important for Machine Running?

Boost Efficiency and Improve Productivity

The service life of electronic components is directly related to the ambient temperature. Generally, electronic components will have a shorter service life for every 10 degrees higher than the normal indoor temperature.

For High temperature environment:

As a result, the operation efficiency of the equipment will decrease and abnormal operation will occur, and the characteristics of the rubber material will also change.

For low temperature environment:

Below the dew point temperature will cause condensation on the surface of the equipment, increasing the risk of equipment corrosion and abnormal operation of the equipment.

Enhance the service life of electronic components and contribute to the efficiency of the enterprise！
